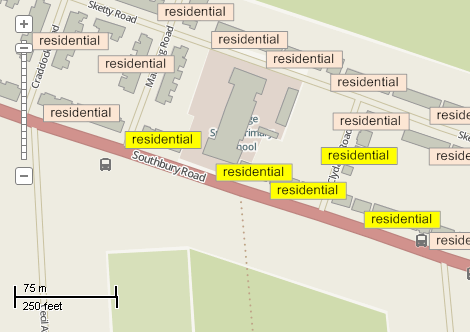

This example demonstrates how to select labels on the map by handling SelectBoxFinal event of the map control. Here is a screenshot with the results of the code execution.

using System.IO;
using System.Linq;
using AxMapWinGIS;
using MapWinGIS;
namespace Examples
public partial class MapExamples
private const int CATEGORY_SELECTED = 0;
// <summary>
// Build a list of unique values of the given field and imlement zooming to them from the context menu
// </summary>
public void LabelSelection(AxMap axMap1, string dataPath)
axMap1.Projection = tkMapProjection.PROJECTION_GOOGLE_MERCATOR;
string filename = dataPath + "buildings.shp";
if (!File.Exists(filename))
System.Windows.Forms.MessageBox.Show("Couldn't file the file: " + filename);
Shapefile sf = new Shapefile();
sf.Open(filename, null);
m_layerHandle = axMap1.AddLayer(sf, true);
sf = axMap1.get_Shapefile(m_layerHandle); // in case a copy of shapefile was created by GlobalSettings.ReprojectLayersOnAdding
// let's add labels consisting of Name and type of building on a separate lines
sf.Labels.Generate("[Type]", tkLabelPositioning.lpCenter, false);
sf.Labels.FrameVisible = true;
sf.Labels.FrameType = tkLabelFrameType.lfRectangle;
// now let's add categories
Utils utils = new Utils(); // to specify colors
LabelCategory ct = sf.Labels.AddCategory("Selected");
ct = sf.Labels.AddCategory("Hidden");
ct.Visible = false;
axMap1.SendSelectBoxFinal = true;
axMap1.SendMouseDown = true;
axMap1.CursorMode = tkCursorMode.cmSelection;
MapEvents.SelectBoxFinal += AxMap1SelectBoxFinal2;
// <summary>
// Handles select box final event. Select the label that are within the rectangular specified by user
// </summary>
void AxMap1SelectBoxFinal2(object sender, _DMapEvents_SelectBoxFinalEvent e)
Shapefile sf = axMap1.get_Shapefile(m_layerHandle);
if (sf != null)
object labels = null;
object parts = null;
var ext = new Extents();
ext.SetBounds(e.left, e.bottom, 0.0, e.right,, 0.0);
if (sf.Labels.Select(ext, 0, SelectMode.INTERSECTION, ref labels, ref parts))
int[] labelIndices = labels as int[];
int[] partIndices = parts as int[];
for (int i = 0; i < labelIndices.Count(); i++)
Label label = sf.Labels.Label[labelIndices[i], partIndices[i]];
if (label.Category == -1) // selection will be appliedonly to the labels without category, so that hidden
label.Category = CATEGORY_SELECTED; //labels preserve their state
