Represents a network built from the polyline shapefile. More...

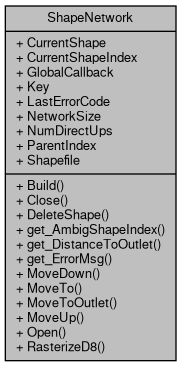

Collaboration diagram for ShapeNetwork:

Public Member Functions
int	Build (Shapefile Shapefile, int ShapeIndex, int FinalPointIndex, double Tolerance, AmbiguityResolution ar, ICallback cBack)
	Builds a shape network from the specified line shapefile using the shape index to determine which shape in the shapefile is to be used as the outlet shape. More...

bool	Close ()
	Closes the shape network. More...

bool	DeleteShape (int ShapeIndex)
	Deletes a shape from the shape network. More...

int	get_AmbigShapeIndex (int Index)
	Gets the shape index of an ambiguous shape in the shape network. More...

double	get_DistanceToOutlet (int PointIndex)
	Gets the distance from the specified point in the current shape to the outlet point in the shape network. More...

string	get_ErrorMsg (int ErrorCode)
	Retrieves the error message associated with the specified error code. More...

bool	MoveDown ()
	Moves the current shape pointer down the network by one link. More...

bool	MoveTo (int ShapeIndex)
	Moves the current shape pointer to the shape specified by the shape index. More...

bool	MoveToOutlet ()
	Moves the current shape pointer to the outlet shape in the shape network. More...

bool	MoveUp (int UpIndex)
	Moves the current shape pointer up the shape network, taking the specified path. More...

bool	Open (Shapefile sf, ICallback cBack)
	Opens a shape network. More...

Grid	RasterizeD8 (bool UseNetworkBounds, GridHeader Header, double Cellsize, ICallback cBack)
	Rasterizes the network into a D8 grid. More...

Properties
Shape	CurrentShape `[get]`
	Gets the current shape object in the shape network. More...

int	CurrentShapeIndex `[get]`
	Gets the index of the current shape in the shape network. More...

ICallback	GlobalCallback `[get, set]`
	The global callback is the interface used by MapWinGIS to pass progress and error events to interested applications. More...

string	Key `[get, set]`
	The key may be used by the programmer to store any string data associated with the object. More...

int	LastErrorCode `[get]`
	Retrieves the last error generated in the object. More...

int	NetworkSize `[get]`
	Gets the number of shapes in the shape network. More...

int	NumDirectUps `[get]`
	Gets the number of upstream shapes in the network before the next fork. More...

int	ParentIndex `[get, set]`
	Gets the index of the parent of the current shape. If the current shape is the outlet shape in the shape network, -1 will be returned. More...

Shapefile	Shapefile `[get]`
	Gets the shapefile used to create the network. More...

Detailed Description

Represents a network built from the polyline shapefile.

A shape network is created from the shapes in a polyline shapefile which allows you to traverse the shapefile simulating water flowing in a watershed to a single outlet. To create a shape network from a polyline shapefile, first choose an outlet shape from the shapes in the shapefile. Next, choose an outlet point within the specified outlet shape. Finally, you need to select a tolerance value. The tolerance is used to determine whether to include a shape in the shape network if it is not connected to the network. Using this starting criteria, a shape network can be created from the polyline shapefile.

Member Function Documentation

◆ Build()

int ShapeNetwork.Build	(	Shapefile	Shapefile,
		int	ShapeIndex,
		int	FinalPointIndex,
		double	Tolerance,
		AmbiguityResolution	ar,
		ICallback	cBack
	)

Builds a shape network from the specified line shapefile using the shape index to determine which shape in the shapefile is to be used as the outlet shape.

Parameters

Shapefile	The shapefile to be used to create the shape network.
ShapeIndex	The index of the shape in the specified shapefile to be used as the outlet shape for the shape network
FinalPointIndex	The point index of the point in the specified outlet shape to be used as the outlet point for the shape network.
Tolerance	The tolerance used to find disconnected segments to merge into the network.
ar	The ambiguity resolution method used to resolve any ambiguity while building the shape network. Distance to outlet is the only ambiguity resolution method implemented.
cBack	Optional. The ICallback object which will receive progress and error messages during the creation of the shape network.

Returns: The success or failure of building the shape network. If a non-zero integer is returned, the shape network build was successful. If a zero is returned, the shape network build was not successful.

◆ Close()

bool ShapeNetwork.Close ( )

Closes the shape network.

Returns: A boolean value representing the success or failure of closing the shape network.

◆ DeleteShape()

bool ShapeNetwork.DeleteShape ( int ShapeIndex )

Deletes a shape from the shape network.

Parameters

ShapeIndex The index of the shape to be deleted from the shape network.

Returns: A boolean value representing the success or failure of deleting the shape from the shape network.

◆ get_AmbigShapeIndex()

int ShapeNetwork.get_AmbigShapeIndex ( int Index )

Gets the shape index of an ambiguous shape in the shape network.

The first ambiguous shape is at index 0. If there are no ambiguous shapes, AmbigShapeIndex(0) will return -1. If AmbigShapeIndex returns -1 and the index you specified isn't 0, it means there are no more ambiguous shapes in the shape network.

Parameters

Index The index into the ambiguous shapes in the shape network.

Returns: The shape index of the ambiguous shape. Returns -1 if there isn't an ambiguous shape at the specified ambiguous shape index.

◆ get_DistanceToOutlet()

double ShapeNetwork.get_DistanceToOutlet ( int PointIndex )

Gets the distance from the specified point in the current shape to the outlet point in the shape network.

Parameters

PointIndex The index of a point in the current shape.

Returns: The distance from the specified point in the current shape to the outlet point in the shape network.

◆ get_ErrorMsg()

string ShapeNetwork.get_ErrorMsg ( int ErrorCode )

Retrieves the error message associated with the specified error code.

Parameters

ErrorCode The error code for which the error message is required.

Returns: The error message description for the specified error code.

◆ MoveDown()

bool ShapeNetwork.MoveDown ( )

Moves the current shape pointer down the network by one link.

Returns: A boolean value representing the success or failure of moving the current shape pointer down the shape network by one link.

◆ MoveTo()

bool ShapeNetwork.MoveTo ( int ShapeIndex )

Moves the current shape pointer to the shape specified by the shape index.

Parameters

ShapeIndex The shape index of the shape in the network to move the current shape pointer to.

Returns: A boolean value representing the success or failure of moving the current shape pointer to the specified shape.

◆ MoveToOutlet()

bool ShapeNetwork.MoveToOutlet ( )

Moves the current shape pointer to the outlet shape in the shape network.

Returns: A boolean value representing the success or failure of moving the current shape pointer to the outlet shape in the shape network.

◆ MoveUp()

bool ShapeNetwork.MoveUp ( int UpIndex )

Moves the current shape pointer up the shape network, taking the specified path.

Parameters

UpIndex The index of the shape in the shape network to use as the upstream path. This is necessary because a node may have more than one upstream path.

Returns: A boolean value representing the success or failure of moving the current shape pointer up in the shape network.

◆ Open()

bool ShapeNetwork.Open	(	Shapefile	sf,
		ICallback	cBack
	)

Opens a shape network.

Parameters

sf	The shapefile object to open as a shape network.
cBack	Optional. ICallback object which will receive progress and error messages while the shape network is opened.

Returns: A boolean value representing the success or failure of opening the shape network

◆ RasterizeD8()

Grid ShapeNetwork.RasterizeD8	(	bool	UseNetworkBounds,
		GridHeader	Header,
		double	Cellsize,
		ICallback	cBack
	)

Rasterizes the network into a D8 grid.

Parameters

UseNetworkBounds	A boolean value representing whether the shape network bounds will be used as the only bounds for the D8 grid or not.
Header	Optional. A grid header to use to create the new grid.
Cellsize	Optional. The cell size to use in creating the D8 grid.
cBack	Optional. The ICallback object which will receive progress and error messages when the grid is being created.

Returns: Optional. The rasterized Grid representing the shape network.

Property Documentation

◆ CurrentShape

Shape ShapeNetwork.CurrentShape

get

Gets the current shape object in the shape network.

◆ CurrentShapeIndex

int ShapeNetwork.CurrentShapeIndex

get

Gets the index of the current shape in the shape network.

◆ GlobalCallback

ICallback ShapeNetwork.GlobalCallback

getset

The global callback is the interface used by MapWinGIS to pass progress and error events to interested applications.

◆ Key

string ShapeNetwork.Key

getset

The key may be used by the programmer to store any string data associated with the object.

◆ LastErrorCode

int ShapeNetwork.LastErrorCode

get

Retrieves the last error generated in the object.

◆ NetworkSize

int ShapeNetwork.NetworkSize

get

Gets the number of shapes in the shape network.

◆ NumDirectUps

int ShapeNetwork.NumDirectUps

get

Gets the number of upstream shapes in the network before the next fork.

◆ ParentIndex

int ShapeNetwork.ParentIndex

getset

Gets the index of the parent of the current shape. If the current shape is the outlet shape in the shape network, -1 will be returned.

◆ Shapefile

Shapefile ShapeNetwork.Shapefile

get

Gets the shapefile used to create the network.
