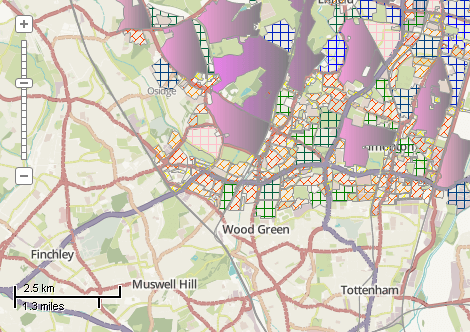

This example demonstrates how to calculate area of polygons and to set 3 ranges of categories with different symbology. This example demonstrates quite elaborate specification of categories. In most cases much easier approaches can be used (see ShapefileCategories.Generate). Here is a screenshot with the results of the code execution.

// ReSharper disable ArrangeAccessorOwnerBody
// ReSharper disable DelegateSubtraction
// ReSharper disable PossibleInvalidCastExceptionInForeachLoop
// ReSharper disable CheckNamespace
using System.IO;
using System.Windows.Forms;
using AxMapWinGIS;
using MapWinGIS;
// ReSharper disable SuggestVarOrType_BuiltInTypes
// ReSharper disable SuggestVarOrType_SimpleTypes
namespace Examples
public partial class MapExamples
// <summary>
// Calculates area of polygons and sets 3 range of categories with different symbology
// </summary>
public void AddCategoryRange(AxMap axMap, string dataPath)
axMap.Projection = tkMapProjection.PROJECTION_GOOGLE_MERCATOR;
string filename = dataPath + "landuse.shp";
if (File.Exists(filename) == false)
MessageBox.Show(@"Failed to open file: " + filename);
Shapefile sf = new Shapefile();
if (!sf.Open(filename)) return;
if (!sf.StartEditingTable())
MessageBox.Show(@"Failed to open editing mode.");
int fieldIndex = sf.Table.FieldIndexByName["Area"];
if (fieldIndex == -1)
fieldIndex = sf.EditAddField("Area", FieldType.DOUBLE_FIELD, 15, 18);
for (int i = 0; i < sf.NumShapes; i++)
double area = sf.Shape[i].Area * 100000.0;
sf.EditCellValue(fieldIndex, i, area);
// adding to map
int handle = axMap.AddLayer(sf, true);
sf = axMap.get_Shapefile(handle); // in case a copy of shapefile was created by GlobalSettings.ReprojectLayersOnAdding
double mean = sf.Table.MeanValue[fieldIndex];
double stDev = sf.Table.StandardDeviation[fieldIndex];
double min = (double)sf.Table.MinValue[fieldIndex];
double max = (double)sf.Table.MaxValue[fieldIndex];
var scheme = new ColorScheme();
// 1. the first range [min; mean - stDev]
Utils utils = new Utils();
sf.Categories.AddRange(fieldIndex, tkClassificationType.ctNaturalBreaks, 5, min, mean);
scheme.SetColors2(tkMapColor.Red, tkMapColor.Yellow);
// apply colors 0 and 4 are indices of categories, since 5 categories were added - from 0 to 4
sf.Categories.ApplyColorScheme3(tkColorSchemeType.ctSchemeRandom, scheme, tkShapeElements.shElementFill, 0, 4);
// 2. the second range [mean - stDev; mean + stDev]
// the default drawing options will be copied to the new categories
sf.Categories.AddRange(fieldIndex, tkClassificationType.ctEqualIntervals, 5, mean, mean + stDev);
scheme.SetColors2(tkMapColor.Green, tkMapColor.Blue);
sf.Categories.ApplyColorScheme3(tkColorSchemeType.ctSchemeGraduated, scheme, tkShapeElements.shElementFill, 5, 9);
// 3. the third range [mean + stDev; max]
// the default drawing options will be copied to the new categories
sf.Categories.AddRange(fieldIndex, tkClassificationType.ctEqualIntervals, 5, mean + stDev, max);
scheme.SetColors2(tkMapColor.Pink, tkMapColor.Violet);
sf.Categories.ApplyColorScheme3(tkColorSchemeType.ctSchemeGraduated, scheme, tkShapeElements.shElementFill, 10, 14);
// apply expresions should be called exlicitly
// saving options to see categories desription in XML
axMap.SaveLayerOptions(handle, "categories_sample", true, "");
// <summary>
// To apply the same options on the next loading
// </summary>
private void RestoreCategories(AxMap axMap, string dataPath)
string filename = dataPath + "landuse.shp";
Shapefile sf = new Shapefile();
if (!sf.Open(filename)) return;
int handle = axMap.AddLayer(sf, true);
string description = "";
axMap.LoadLayerOptions(handle, "categories_sample", ref description);
