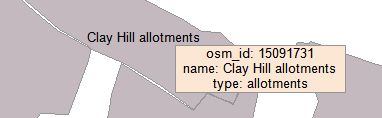

This example demonstrates how to show tootip with attributes of a shape in mousemove event. The tooltip is drawn as a label on the spatially referenced drawing layer. The smooth redraw of the tooltip is possible only for version higher than 4.8 where the redraw of the spatially referenced drawing layers can be done independently of the data layers. Here is a screenshot with the results of the code execution.

using System.IO;
using System.Windows.Forms;
using AxMapWinGIS;
using MapWinGIS;
namespace Examples
public partial class MapExamples
// the handle of the drawing layer
private int _mDrawingHandle = -1;
// <summary>
// Opens a shapefile, registers event handler
// </summary>
public void ToolTip(AxMap axMap1, string dataPath)
axMap1.Projection = tkMapProjection.PROJECTION_GOOGLE_MERCATOR;
string filename = dataPath + "landuse.shp";
if (!File.Exists(filename))
MessageBox.Show("Couldn't file the file: " + filename);
Shapefile sf = new Shapefile();
sf.Open(filename, null);
if (!sf.StartEditingShapes(true, null))
MessageBox.Show("Failed to start edit mode: " + sf.Table.ErrorMsg[sf.LastErrorCode]);
sf.UseQTree = true;
sf.Labels.Generate("[Name]", tkLabelPositioning.lpCentroid, false);
axMap1.AddLayer(sf, true);
axMap1.SendMouseMove = true;
axMap1.ShowRedrawTime = true;
axMap1.MapUnits = tkUnitsOfMeasure.umMeters;
axMap1.CurrentScale = 50000;
axMap1.CursorMode = tkCursorMode.cmNone;
MapEvents.MouseMoveEvent += AxMap1MouseMoveEvent; // change MapEvents to axMap1
_mDrawingHandle = axMap1.NewDrawing(tkDrawReferenceList.dlScreenReferencedList);
Labels labels = axMap1.get_DrawingLabels(_mDrawingHandle);
labels.FrameVisible = true;
labels.FrameType = tkLabelFrameType.lfRectangle;
// <summary>
// Handles mouse move event. Determines which shape is under cursor. Calls drawing routine.
// </summary>
void AxMap1MouseMoveEvent(object sender, _DMapEvents_MouseMoveEvent e)
Labels labels = axMap1.get_DrawingLabels(0);
// it's assumed here that the layer we want to edit is the first 1 (with 0 index)
int layerHandle = axMap1.get_LayerHandle(0);
var sf = axMap1.get_Shapefile(layerHandle);
if (sf != null)
double projX = 0.0;
double projY = 0.0;
axMap1.PixelToProj(e.x, e.y, ref projX, ref projY);
object result = null;
var ext = new Extents();
ext.SetBounds(projX, projY, 0.0, projX, projY, 0.0);
if (sf.SelectShapes(ext, 0.0, SelectMode.INTERSECTION, ref result))
int[] shapes = result as int[];
if (shapes != null && shapes.Length == 1)
string s = "";
for (int i = 0; i < sf.NumFields; i++)
s += sf.Field[i].Name + ": " + sf.CellValue[i, shapes[0]] + "\n";
labels.AddLabel(s, e.x + 80, e.y);
